Model: X05

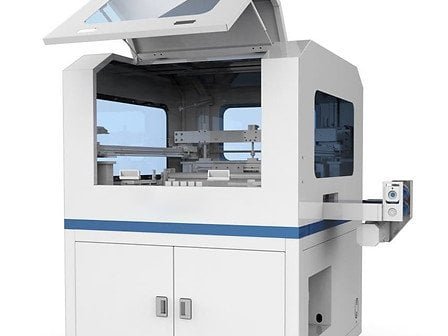

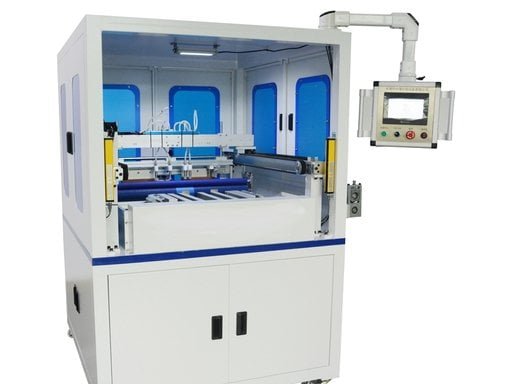

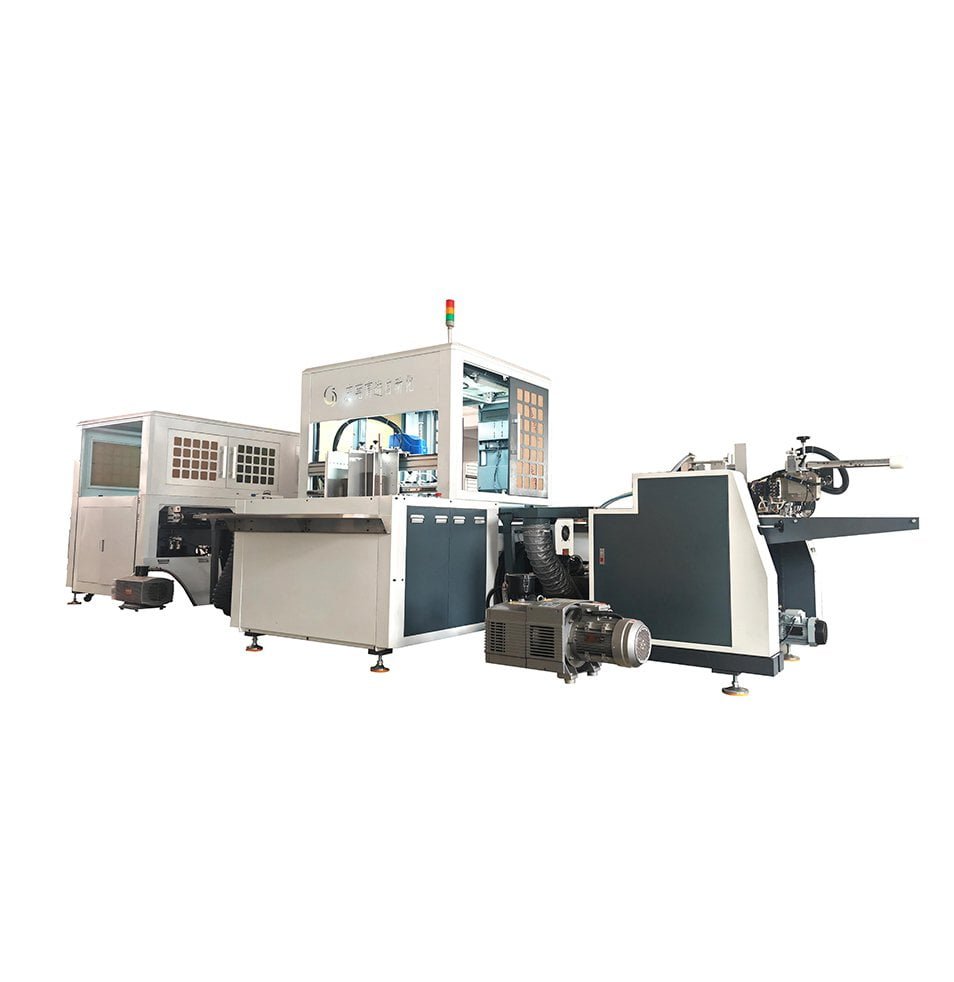

X-05 Automatic folding box flanking machine
Automatic folding box flanking machine
Overview
This machine is designed for automatic production of folding gift box side wings. Equipped with servo drive and visual positioning system, it precisely completes side-wing flanging, leveling and edging processes. Mold-free and easy to operate, it greatly improves efficiency and saves labor. The formed boxes are firm and bubble-free, ideal for foldable luxury boxes of cosmetics, jewelry and wine, effectively reducing transportation and storage costs.
Specifications
Applicable Box Type
Foldable book-style, collapsible rigid boxes, etc.
Material Thickness
Gray board 1.0–3.0mm, cover paper 120–300g
Forming Speed
800–1500 pcs/h
Servo Axes
3-4 axes
Positioning Accuracy
±0.1mm
Max Forming Size
Width 80–400mm, Length 100–500mm
Hot Melt Glue
Spraying/coating, adjustable glue volume
Total Power
3.5–5.5KW
HMI
7-inch touch screen, one-key format change
Dimension/Weight
2200×1100×1500mm, 800–1000kg
Applications
Rigid Box
Case Making
Key Features
This machine adopts servo drive and precise positioning, with fast forming speed and high accuracy, suitable for various foldable boxes. Easy to operate with one-key format change, supports adjustable hot melt glue, saves energy and labor, produces neat and flawless boxes, suitable for high-end gift box production, with compact structure to save space.
